2025 Advanced VG910 Fiber Optic Gyroscope with Low Cost 500$ for UAV

2025 Advanced VG910 Fiber Optic Gyroscope with Low Cost 500$ for UAV

Markenbezeichnung:	Firepower
Modellnummer:	MFOG-910
MOQ:	1
Preis:	Verhandlungsfähig
Zahlungsbedingungen:	L/C, D/P, T/T, Western Union
Versorgungsfähigkeit:	500/month

Einzelheiten

Produktbeschreibung

Einzelheiten

Place of Origin:

China

Reichweite:

±240°/s

Null-Bias-Stabilität (10s, 1σ):

≤ 0,8°/h

eckige Irrfahrt:

≤ 0,02°/h

3DB -Bandbreite:

≥1000Hz

Wiederholbarkeit ohne Vorspannung (1σ):

≤ 0,8°/h

Nichtlinearität des Skalierungsfaktors:

≤1000ppm

Gewicht:

≤150g

Stromverbrauch:

≤1.5w

Packaging Details:

Sponge + Carton

Supply Ability:

500/month

Hervorheben:

low cost fiber optic gyroscope

UAV fiber optic gyro

affordable VG910 gyroscope

Produktbeschreibung

2025 Advanced VG910 Fiber Optic Gyroscope with Low Cost $500 for UAV

Product Specifications

Attribute	Value
Range	±240°/s
Zero-bias stability (10s, 1σ)	≤0.8°/h
Angular random walk	≤0.02°/h
3dB Bandwidth	≥1000Hz
Zero-bias repeatability (1σ)	≤0.8°/h
Scale factor nonlinearity	≤1000ppm
Weight	≤150g
Power Consumption	≤1.5W

Product Overview

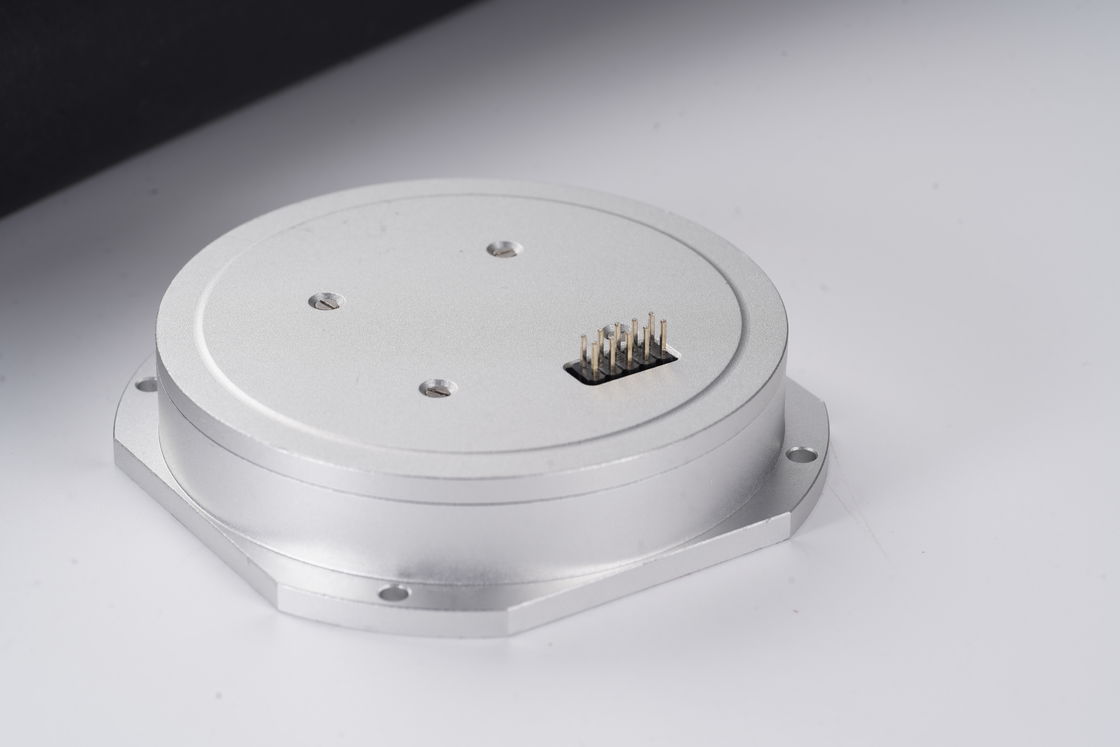

The 2025 New Temperature Compensated Fiber Optic Gyroscope Sensor (VG910) is a high-performance angular rate sensor designed for oil exploration and other demanding applications. This compact unit integrates optical, mechanical, and electronic systems into a robust package that operates based on the Sagnac effect, utilizing counter-propagating light beams through a micro-nano optical fiber coil to precisely detect angular velocity.

Key Features

All-solid-state design with no moving parts for exceptional reliability
Fast startup and long operational life (≥15 years)
Excellent resistance to shock (≥1500g) and vibration (≥70g)
Compact size and lightweight construction (≤150g)
Low power consumption (≤1.5W)
High MTBF (≥100,000 hours calculated assessment)

Performance Parameters

Parameter	Specification
Range (°/s)	±240
Scale factor (mV/°/s)	47±5
Scale factor nonlinearity (ppm)	≤1000
Zero-bias stability (10s, 1σ, °/H)	≤0.8
Zero-bias repeatability (1σ, °/H)	≤0.8
3dB Bandwidth (Hz)	≥1000
Random walk (°/√H)	≤0.02
Power supply (V)	5+0.25+12
