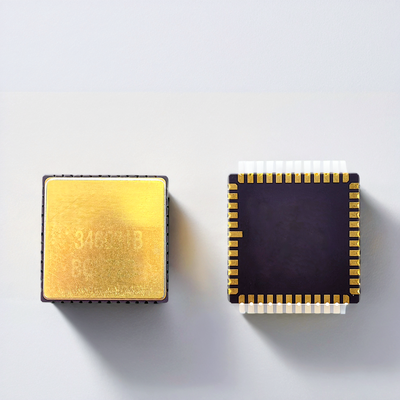

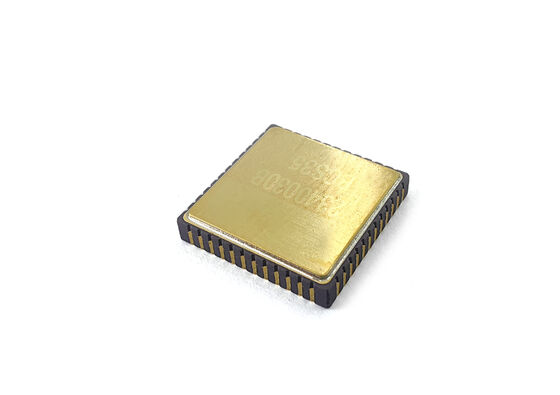

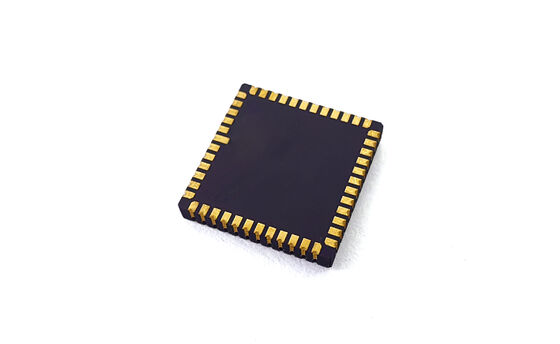

Cost Effective MEMS Gyroscope Chip with 400°/s Measuring Range 200Hz Bandwidth and 24bit SPI Output

Name: Cost Effective MEMS Gyroscope Chip with 400°/s Measuring Range 200Hz Bandwidth and 24bit SPI Output
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MGZ221HC-A4
Price: 10000 USD
Availability: InStock

Markenbezeichnung:	Firepower
Modellnummer:	MGZ221HC-A4
MOQ:	1
Preis:	Verhandlungsfähig
Zahlungsbedingungen:	T/T
Versorgungsfähigkeit:	500/Monat

Einzelheiten

Produktbeschreibung

Einzelheiten

Herkunftsort:

China

Messbereich:

400 °/s

Bias-Stabilität (Allan):

<0,5°/h

Bias-Stabilität (1s 10s):

< 5°/h

Angular Random Walk:

<0,25°/√h

Bandbreite (-3 dB):

200Hz

Ausgabegenauigkeit:

24-Bit-SPI

Ausgaberate (ODR):

12k Hz

Skalafaktor:

16000 lsb/Grad/s

Rauschen (Spitze zu Spitze):

<0,4°/s

Betriebstemperatur:

-40 ° C ~ +85 ° C.

Verpackung Informationen:

sponge+box

Versorgungsmaterial-Fähigkeit:

500/Monat

Hervorheben:

MGZ221HC-A4 MEMS Gyro Chip

Cost Effective Gyroscope Sensor

400deg/s Angular Rate SPI

Produktbeschreibung

Cost Effective Angular Rate Sensor MEMS Gyroscope Chip 400°/s 200Hz Bandwidth SPI Output

The MGZ221HC-A4 is a high-performance MEMS gyroscope chip delivering accurate and stable angular rate measurement for navigation and control systems. Featuring low noise, low drift, and excellent environmental adaptability, it is suitable for UAV flight control, inertial navigation, and industrial automation applications. This cost-effective MEMS gyroscope chip delivers reliable angular rate measurement for industrial automation, robotics, and general motion sensing applications with balanced performance including <0.5°/h bias stability at competitive pricing.

Key Specifications

Parameter	Unit	MGZ221HC-A4
Measuring Range	deg/s	400°/s
Bandwidth (-3dB, customizable)	Hz	200Hz
Output Accuracy (Digital SPI)	bits	24
Output Rate ODR (customizable)	Hz	12K
Delay (customizable)	ms	<1.5ms
Bias Stability (Allan variance)	deg/h (1-sigma)	<0.5°/h
Bias Stability (1-sigma, 10s)	deg/h (1-sigma)	<5°/h
Angular Random Walk (ARW)	deg/sqrt-h	<0.25°/√h
Scale Factor at 25°C	lsb/deg/s	16000 lsb/deg/s
Scale Factor Repeatability (1-sigma)	ppm (1-sigma)	<100ppm
Scale Factor vs Temperature (1-sigma)	ppm (1-sigma)	<300ppm
Scale Factor Nonlinearity (1-sigma)	ppm	<300ppm
Noise (Peak to Peak)	deg/s	<0.4°/s
G-Value Sensitivity	deg/h/g	<3
Power-On Time (Valid Data)	s	750m
Sensor Resonant Frequency	Hz	10.5k-13.5K
Impact (Powered On)		500g, 1ms
Impact Resistance (Powered Off)		10000g, 10ms
Vibration (Powered On)		18g RMS (20Hz-2kHz)
Operating Temperature		-40°C ~ +85°C
Storage Temperature		-55°C ~ +125°C
Supply Voltage		5 +/- 0.25V
Current Consumption		45mA

Key Features

400°/s measuring range with 200Hz bandwidth
<0.5°/h bias stability (Allan variance)
<0.25°/√h angular random walk
SPI digital output at 24-bit resolution
Operates from -40°C to +85°C with full temperature compensation
Withstands 500g impact and 18g RMS vibration
Low noise and low drift performance

Applications

UAV drone flight control and attitude stabilization
Inertial navigation systems and AHRS
Industrial automation and robotics motion sensing
Platform stabilization and antenna tracking
Precision surveying and georeferencing
Automotive vehicle dynamics and ADAS testing

Packing & Shipping

The MGZ221HC-A4 MEMS gyroscope chip is packaged in anti-static ESD-safe packaging within an export-grade carton box. Firepower brand, made in China. Minimum order quantity 1 piece, sample delivery within 7 days. Bulk supply capacity 500 pieces per month. Payment terms T/T. For price inquiry or to request samples, please contact us.
