Faseroptikkreiselkompaß
Created with Pixso.

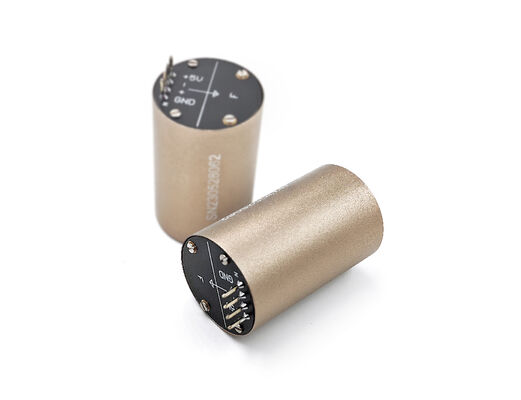

High Precision Single Axis Fiber Optic Gyro with 0.008 Degree per Hour Bias for Tactical Navigation Systems

High Precision Single Axis Fiber Optic Gyro with 0.008 Degree per Hour Bias for Tactical Navigation Systems

Markenbezeichnung: WNRLN
Modellnummer: MFOG091-H
MOQ: 1 Stück
Preis: USD 1200-1800 / Piece
Zahlungsbedingungen: T/T, L/C, PayPal, Western Union
Versorgungsfähigkeit: 300 Stück pro Monat
Einzelheiten
Herkunftsort:
Guangdong, China
Zertifizierung:
ISO 9001:2015, CE, RoHS
Typ der Gyrostation:
Hochpräziser Nebel mit geschlossenem Regelkreis
Anzahl der Achsen:
1 Achse
Biasstabilität:
0,008 Grad/h (1 Sigma)
Voreingenommenheit Wiederholbarkeit:
0,008 Grad/h (1 Sigma)
Nichtlinearität des Skalierungsfaktors:
≤ 30 ppm
Messbereich:
± 300 Grad/s
Zufälliger Spaziergang:
0,001 Grad/√h
Bandbreite:
≥ 200 Hz
Betriebstemperatur:
-40°C bis +70°C
Schnittstelle:
RS422
Stromversorgung:
±5V DC
Stromverbrauch:
≤ 4,5W
Gewicht:
≤ 380g
Abmessungen:
Φ55mm x 38mm
Lagertemperatur:
-55°C zu +85°C
MTBF:
≥ 60.000 Stunden
Verpackung Informationen:
Schutzhülle mit WNRLN-Logo und stoßfester Schaumstoffeinlage, Wellpappe in Exportqualität
Versorgungsmaterial-Fähigkeit:
300 Stück pro Monat
Hervorheben:

0.008 Degree per Hour Bias Fiber Optic Gyro

,

High Precision Closed Loop Navigation Sensor Module

,

Tactical Navigation Systems Tactical Grade Gyro

Produktbeschreibung

High Precision Fiber Optic Gyro MFOG091-H

The MFOG091-H is the high precision variant featuring 0.008 deg/h bias stability achieved through upgraded optical coil winding and advanced digital signal processing. Purpose-built for tactical navigation systems requiring superior drift performance.

Key Features

  • Enhanced Bias Stability: 0.008 deg/h (1 sigma) with premium optical coil and precision electronics.
  • Improved Scale Factor: Nonlinearity ≤ 30 ppm for high-accuracy angular measurement.
  • Low Random Walk: 0.001 deg/√h minimizes short-term angle integration errors.
  • Extended MTBF: ≥ 60,000 hours with selected components for mission-critical reliability.
  • Temperature Compensated: Full-range calibration from -40°C to +70°C.

Applications

  • Tactical Inertial Navigation Systems (INS)
  • Stabilized Electro-Optical Payloads
  • Missile Mid-Course Guidance
  • Precision Geodetic Survey Equipment
  • Autonomous Underwater Vehicle Navigation

Contact our engineering team for detailed performance data and customization options.
