MGZ200HC-D1 Firepower 200dps Dual Axis MEMS Gyroscope Chip 200Hz BW 0.15deg/hr Bias for Industrial Platform Leveling

Name: MGZ200HC-D1 Firepower 200dps Dual Axis MEMS Gyroscope Chip 200Hz BW 0.15deg/hr Bias for Industrial Platform Leveling
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MGZ200HC-D1
Price: 10000 USD
Availability: InStock

Markenbezeichnung:	Firepower
Modellnummer:	MGZ200HC-D1
MOQ:	1 Stück
Preis:	Verhandlungsfähig
Zahlungsbedingungen:	T/T
Versorgungsfähigkeit:	500 Stück pro Monat

Einzelheiten

Produktbeschreibung

Einzelheiten

Herkunftsort:

China

Bandbreite:

200Hz

Biasstabilität:

<0,15°/h

Angular Random Walk:

<0,08°/√h

Versorgungsspannung:

5 ± 0,25 V

Ausgabegenauigkeit:

24 Bits

Messbereich:

200 Grad/s

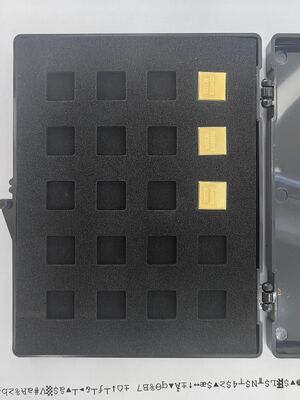

Verpackung Informationen:

Antistatischer Schwamm mit ESD-Schutzbox, Exportkarton

Versorgungsmaterial-Fähigkeit:

500 Stück pro Monat

Hervorheben:

Dual Axis MEMS Gyroscope Chip

Industrial Platform Leveling Sensor

Firepower 200dps Dual Gyro

Produktbeschreibung

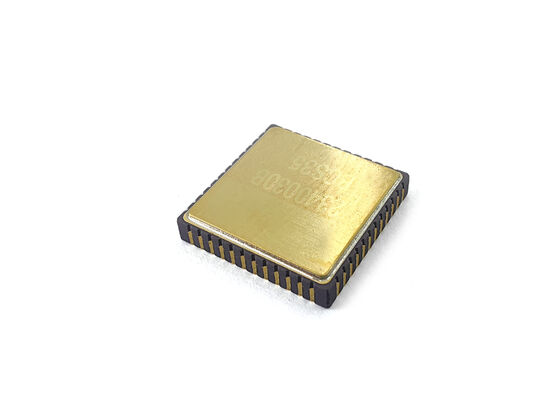

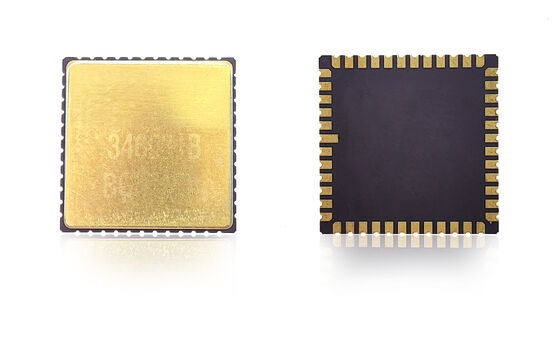

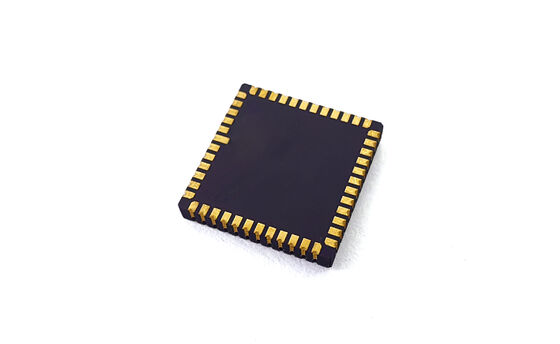

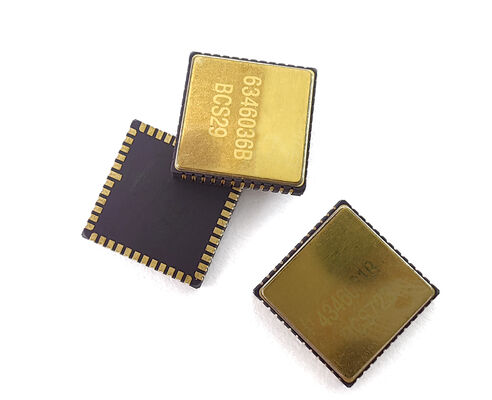

Firepower MGZ200HC-D1 Dual Axis MEMS Gyroscope Chip

Product Overview

The MGZ200HC-D1 is a dual-axis MEMS gyroscope chip that measures pitch and roll angular rates simultaneously with 200°/s range and 200Hz bandwidth. Designed for industrial applications requiring compact 2-axis angular sensing, it delivers <0.15°/h bias stability and <0.08°/√h ARW per axis. The 24-bit SPI digital output at 12kHz ODR provides synchronized dual-channel data for real-time platform leveling, 2-axis gimbal control, and construction equipment attitude monitoring. This dual-axis configuration reduces system complexity and PCB footprint compared to using two single-axis sensors.

Technical Specifications

Performance	Unit	MGZ200HC-D1
Range (per axis)	deg/s	200
Band Width @3DB (per axis)	Hz	200
Output accuracy (digital SPI)	bits	24
Output rate (ODR per axis)	Hz	12K
Delay	ms	<1.5
Bias stability (per axis)	deg/hr(1σ)	<0.15
Bias stability (1σ 10s)	deg/hr(1σ)	<1.5
Bias error over temperature (1σ)	deg/hr(1σ)	<20
Scale factor at 25°C	lsb/deg/s	16000
Scale factor repeatability (1σ)	ppm(1σ)	<50
Scale factor vs temperature (1σ)	ppm(1σ)	<200
Scale factor non-linearity (1σ)	ppm	<200
Angular random walk (ARW)	°/√h	<0.08
Noise (Peak to Peak)	deg/s	<0.3
G Value sensitivity	°/hr/g	<2

Environmental Suitability

Impact (power on): 500g, 1ms
Impact resistance (power off): 10000g, 10ms
Vibration (power on): 18g rms (20Hz to 2kHz)
Working temperature: -40°C to +85°C
Store temperature: -55°C to +125°C
Supply voltage: 5±0.25V
Current consumption: 55mA (dual-axis mode)

Target Applications

Heavy machinery platform leveling and tilt monitoring
2-axis camera and sensor gimbal stabilization
Construction equipment boom and arm angle control
Solar tracker dual-axis positioning feedback
Marine vessel pitch and roll motion monitoring

Key Advantages

Compact MEMS design with low power consumption for easy system integration
24-bit high-resolution digital SPI output with customizable ODR up to 12kHz
Excellent shock and vibration resistance for harsh environment operation
Factory calibrated with temperature compensation across full operating range
OEM customization available for specific bandwidth, range, and interface requirements
