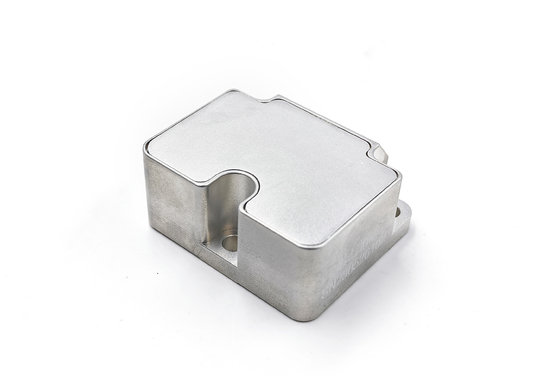

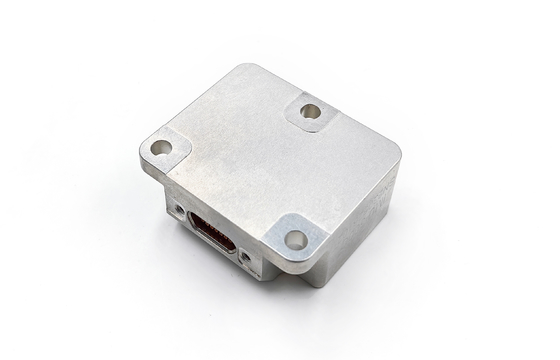

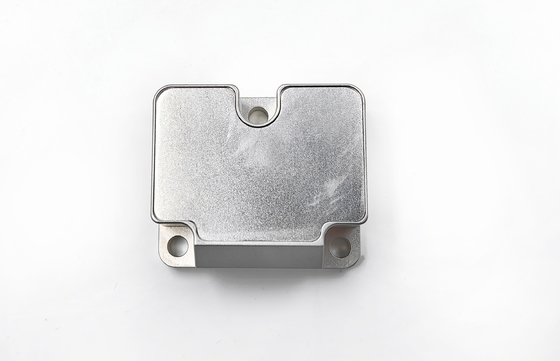

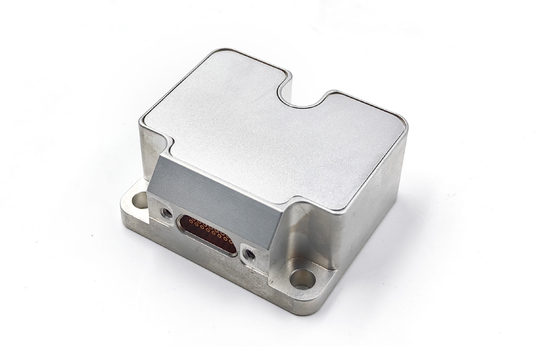

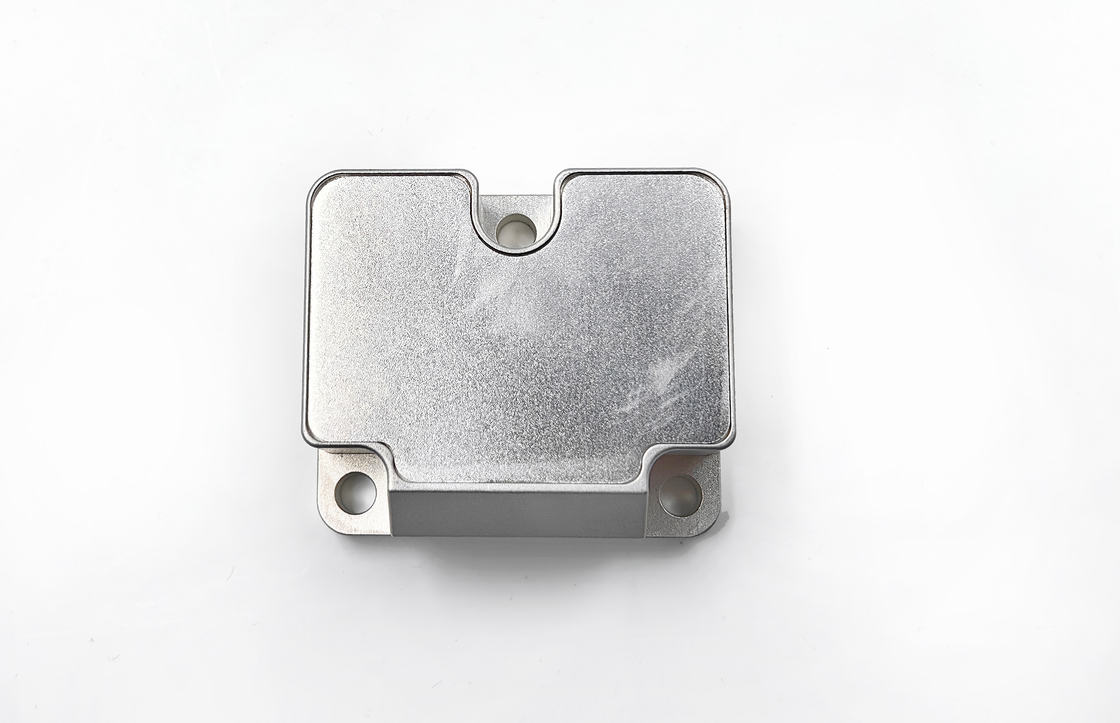

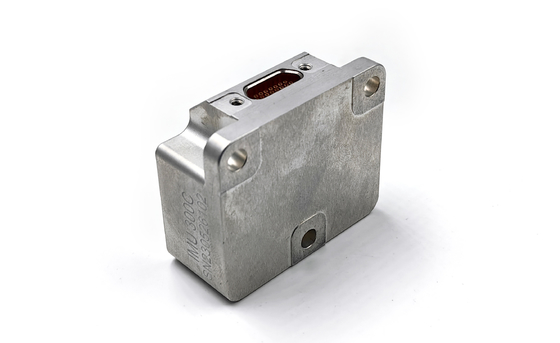

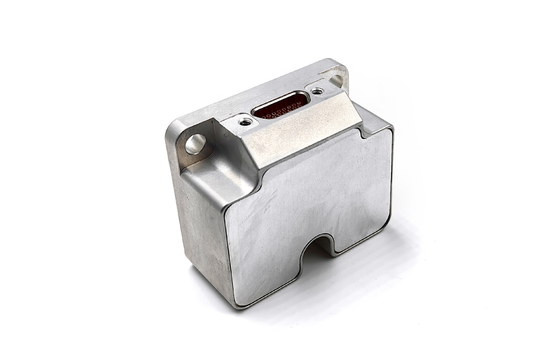

Stim300 IMU Drone Controller with 0.1°/h Gyro Stability

Markenbezeichnung:	FIREPOWER
Modellnummer:	IMU6-1a
MOQ:	1
Preis:	2500$
Zahlungsbedingungen:	T/T, L/C, Western Union
Versorgungsfähigkeit:	1 woche für probe

Einzelheiten

Produktbeschreibung

Einzelheiten

Herkunftsort:

CHINA

Zertifizierung:

Gyro -Reichweite (anpassbar):

± 400 °/s

In-Run-Bias-Stabilität (@ Allan Varianz):

0.1°/h

Bias -Stabilität @10s (10s glatt, 1σ, Raumtemperatur):

1°/h

Angular Random Walk:

0.1°/√h

Bandbreite DB-3:

200Hz

ACC -Bereich (anpassbar):

±30g

In-Run-Bias-Stabilität (Allan Varianz bei 25 ℃):

00,05 mg

Biasstabilität @10s:

0.2 mg

Verpackung Informationen:

Schwamm + Karton

Versorgungsmaterial-Fähigkeit:

1 woche für probe

Hervorheben:

Stim300 IMU drone controller

IMU with 0.1°/h gyro stability

drone gyro sensor with warranty

Produktbeschreibung

Stim300 IMU Drone Flight Controller with 0.1°/h Gyro Stability

The MEMS inertial measurement unit consists of a three-axis gyroscope, three-axis accelerometer, three-axis inclination angle sensor, temperature sensor, signal processing board, and necessary software. It measures three-axis angular rate, three-axis acceleration, and three-axis inclination angle of a carrier, outputting compensated data (including temperature, installation misalignment, and nonlinear compensation) via RS-422 serial port.

Gyroscope Specifications

Parameter	Unit	IMU6-1	IMU6-1A	IMU6-1B	IMU6-1C
Measuring range (customizable)	°/s	±400	±400	±400	±2000
In-Run Bias Stability(@ Allan variance)	°/h	0.3	0.1	0.05	1
Bias stability @10s (10s smooth, 1σ, room temperature)	°/h	3	1	0.5	6
Bias stability in full temperature	°/h	10	3	2	18
Angular Random Walk	°/√h	0.15	0.1	0.02	0.3
Bias repeatability (1σ)	°/h	1	0.5	0.3	2
Bias acceleration sensitivity	°/h/g	1	1	1	2
Scale Factor Non-Linearity(1σ)	ppm	150	150	150	300
Scale Factor Repeatability (1σ)	ppm	20	20	20	100
Misalignment	°	±0.05	±0.05	±0.05	±0.05
3 dB Bandwidth	Hz	250	200	150	250

Accelerometer Technical Indicators

Parameter	Unit	IMU6-1y-1	IMU6-1y-2	IMU6-1y-3	IMU6-1y-4
Measuring range (customizable)	g	±10	±30	±50	±80
In-Run Bias Stability (Allan Variance @ 25 ℃)	mg	0.02	0.05	0.1	0.2
Bias stability @10s	mg	0.05	0.2	0.5	1
Bias stability in full temperature	mg	1	3	5	15
Angular Random Walk	m/s/√h	0.001	0.002	0.005	0.01
Bias repeatability(1σ)	mg	0.1	0.5	1	2
Scale Factor Repeatability (1σ)	ppm	200	200	200	200
Scale Factor Non-Linearity(1σ)	ppm	50	100	200	300
Misalignment	°	±0.05	±0.05	±0.05	±0.05
3 dB Bandwidth	Hz	100	100	100	100
