ADIS16488 Drop-In Replacement 10-Axis MEMS IMU Sensor with 10-Axis Sensor Fusion and 20000h MTBF

16488HB 10-Axis MEMS Inertial Measurement Unit | ADIS16488 Drop-In Replacement IMU Sensor

Product Description

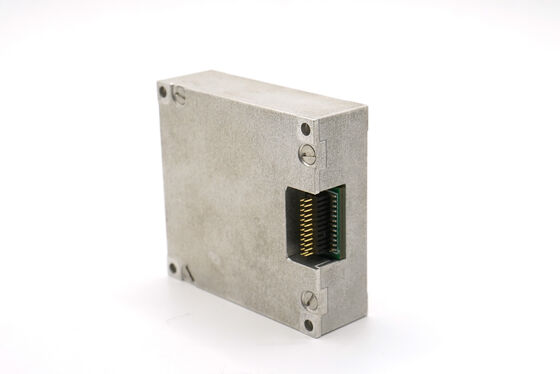

The 16488HB multi-degree-of-freedom MEMS inertial measurement unit IMU sensor is a complete 10-axis inertial navigation system INS integrating a triaxial MEMS gyroscope angular rate sensor, a triaxial digital accelerometer, a triaxial magnetometer electronic compass, and a high-precision barometric pressure sensor altimeter. Engineered as a pin-compatible ADIS16488 drop-in replacement IMU inertial sensor module, this inertial measurement unit delivers precision measurement of angular velocity, linear acceleration, magnetic field strength heading, and altitude barometric pressure with high accuracy, low drift, and low noise performance suitable for industrial-grade inertial sensing motion tracking.

The 16488HB IMU outputs fully temperature-compensated and calibrated inertial data after comprehensive error compensation including temperature calibration, installation misalignment angle compensation, nonlinear compensation, and cross-axis sensitivity correction through SPI digital serial interface, UART serial communication port, and CAN bus fieldbus interface. With 0.8deg/h gyro Allan variance bias instability, 0.15deg/sqrt-h angular random walk ARW, +-2000deg/s gyro dynamic measurement range, and +-200g accelerometer measurement range, the 16488HB inertial sensor provides industrial-grade precision for demanding motion sensing, attitude heading reference system AHRS, and inertial navigation applications.

Designed and manufactured by Firepower, the 16488HB achieves 20000 hours MTBF mean time between failures with full operational accuracy across the entire -40degC to +80degC operating temperature range thanks to a built-in high-performance temperature calibration and compensation algorithm. The ruggedized IMU sensor is qualified for harsh environment deployment, withstanding 6.06G random vibration (20~2000Hz) and 1000G high-G shock impact (0.5ms half-sine pulse). CE certified, made in China, with competitive pricing and fast sample delivery.

Technical Parameters

Applications

• UAV drone flight control and attitude stabilization
• Autonomous vehicle AGV inertial navigation systems
• Robotics motion sensing and balance control
• Gimbal camera stabilization and antenna tracking
• Marine vessel motion monitoring and dynamic positioning
• Industrial automation condition monitoring and vibration analysis
• Precision surveying and georeferencing instrumentation
• Railway train attitude monitoring and track inspection

Packing & Shipping

The 16488HB MEMS inertial measurement unit IMU sensor module is packaged in anti-static ESD-safe sponge within an export-grade corrugated carton box. Firepower brand, CE certified, made in China. Minimum order quantity 1 piece, sample delivery within 1 week. Bulk supply capacity 500 pieces per month. Payment terms L/C, T/T. For price inquiry or to request evaluation samples, please contact us.
