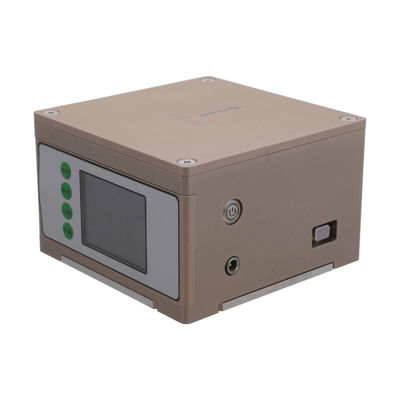

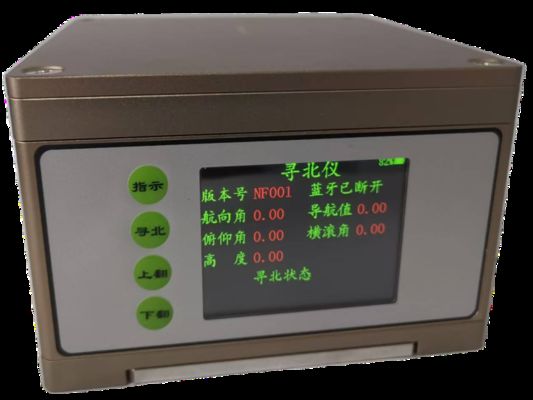

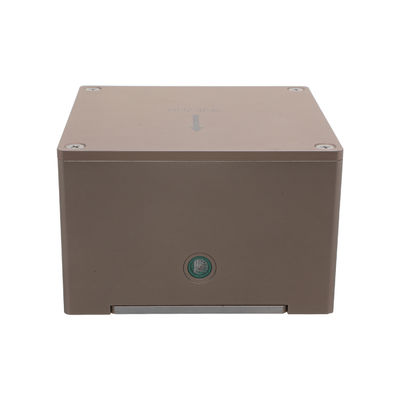

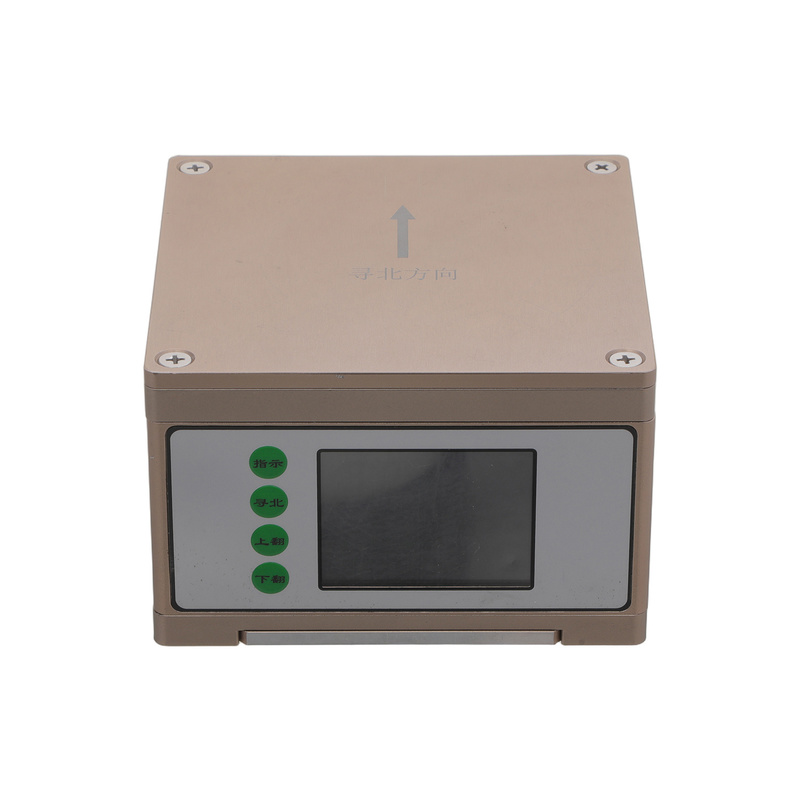

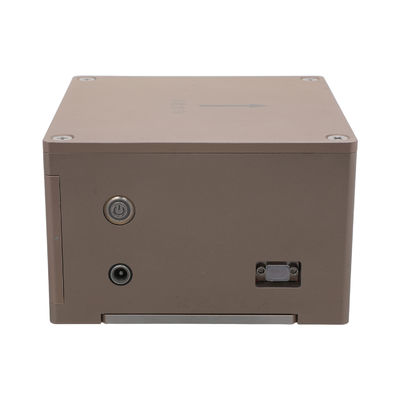

North Seeking Gyro Seeker Accurate Azimuth Measurement with LCD Display

Markenbezeichnung:	FIREPOWER
Modellnummer:	NF-103A
MOQ:	1
Preis:	4000$
Zahlungsbedingungen:	L/C, T/T
Versorgungsfähigkeit:	500/Monat

Einzelheiten

Produktbeschreibung

Einzelheiten

Herkunftsort:

China

Norden sucht Genauigkeit:

± 0,5 °

Pitchgenauigkeit:

± 0,1 °

Rollwinkelgenauigkeit:

± 0,1 °

Anpassungsfähigkeit neigen:

± 15 °

Kofferwinkel -Tracking -Messgenauigkeit:

0,5 ° (5 min)

Gewicht:

≤ 1500 g

Verpackung Informationen:

Schwamm + Karton

Versorgungsmaterial-Fähigkeit:

500/Monat

Hervorheben:

North seeking gyro with LCD display

Gyro north finder for azimuth measurement

Accurate gyro seeker with warranty

Produktbeschreibung

North Seeking Gyro Seeker - Accurate Azimuth Measurement with LCD Display

Product Features

Commercial-grade products with rich features, built-in explosion-proof battery for easy portability. Industrial grade models feature compact size, lightweight design, and low power consumption.

Typical Applications

Radar, antenna, and vehicle initial alignment and direction control
Providing accurate azimuth reference for tunnel construction, mining, and geodetic survey projects
Field survey, outdoor exploration, and communication base station antenna orientation

Technical Specifications

PROJECT	UNIT	COMMERCIAL GRADE NF-103A	COMMERCIAL GRADE NF-103B	INDUSTRIAL GRADE NF-102A	INDUSTRIAL GRADE NF-102B
Communication mode		Screen display/mobile phone APP/upper computer software RS422/RS485	RS422/RS232
Connector		J30JM-9ZKP	J30JM-9ZKP	J30JM-15ZKP	J30JM-15ZKP
Power consumption (with laser indication)	W	≤3	≤3
Power consumption (without laser indication)	W	≤1.2	≤1.2	≤1	≤1
Power supply	V	Standby for 18h with explosion-proof battery	DC9V~26V	DC9V~26V
Operating temperature	ºC	0~+40	0~+40	-40~+60	-40~+60
North seeking time	min	≤3
North seeking accuracy	°	±0.5	±1	±0.5	±1
Pitch accuracy	°	±0.1	±0.5	±0.1	±0.5
Roll angle accuracy	°	±0.1	±0.5	±0.1	±0.5
Tilt adaptability	°	±15
Altitude measurement	m	include	include
Overall dimensions	mm	13513585		606060
Installation dimensions	mm	119*119		46*53
Weight	g	≤1500	≤1500	≤400	≤400
Heading angle tracking measurement accuracy		0.5°(5min)
Pitch angle tracking measurement accuracy		0.1°(5min)
Roll angle tracking measurement accuracy		0.1°(5min)
Optional configuration		MA Certified, Intrinsically Safe		MA certified, flameproof
Implementation standards		GB/T3836.1-2021 GB/T3836.2-2021
IP rating		IP55		IP65
